Cascadia Motion iM-225DX-D Integrated Motor & Inverter

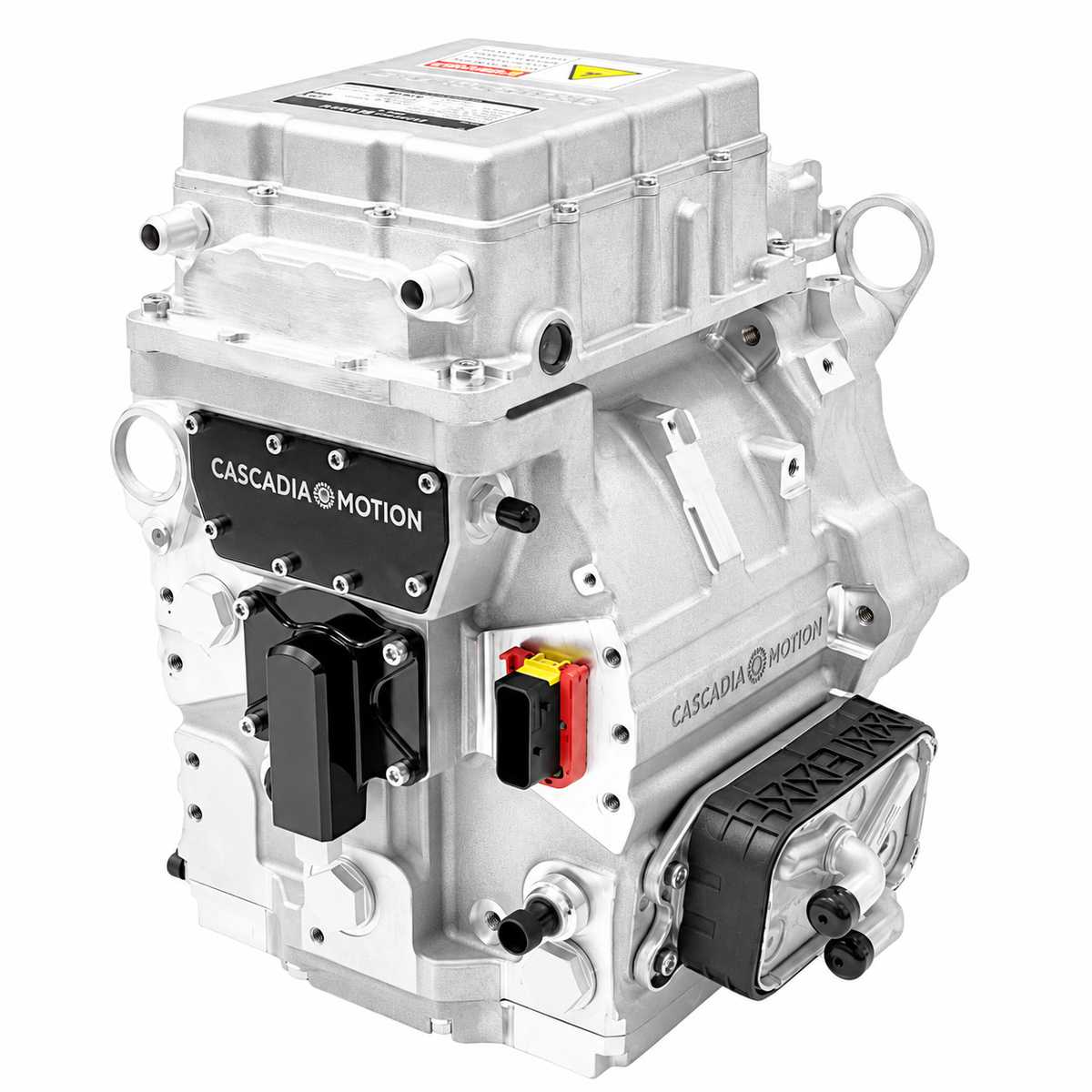

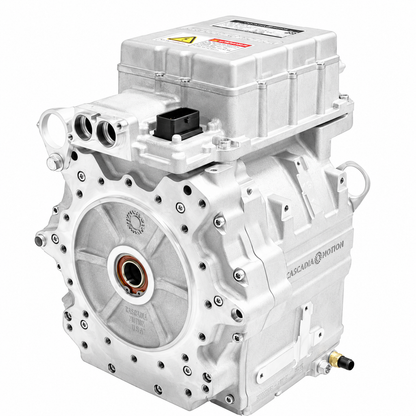

The Cascadia Motion iM-225DX-D combines a 225 kW (302 hp) motor and CM200DX inverter in one compact unit. The integrated design removes the need for external motor phase cables.

Motor and inverter in one unit

Built around the BorgWarner HVH250 motor core, the iM-225 delivers up to 500 Nm (369 lb-ft) of motor torque. An integrated oil pump, oil cooler, oil sump, and water pump support thermal management.

Specifications

• Peak power: 225 kW / 302 hp
• Peak torque: 500 Nm / 369 lb-ft
• Continuous power: 110–135 kW
• Continuous torque: 230 Nm
• Maximum speed: 12,000 rpm
• DC operating voltage: 50–480 V
• Weight: 64 kg / 141 lb

Manufacturer performance ratings are for the iM-225DX-D at 400 V DC. Peak ratings apply for 30 seconds. Voltage, coolant temperature, and system limits affect output.

Included

One iM-225DX-D integrated motor and CM200DX inverter, with its integrated pumps, cooler, and sump.

Complete your system

DC battery cables and the low-voltage connector and pin kit are sold separately. You will also need a compatible vehicle control unit, battery system, cooling circuit, and mechanical installation hardware.

Build a Flux Drive System with this motor to select the drive components for your project.

Manufacturer specifications and documentation
