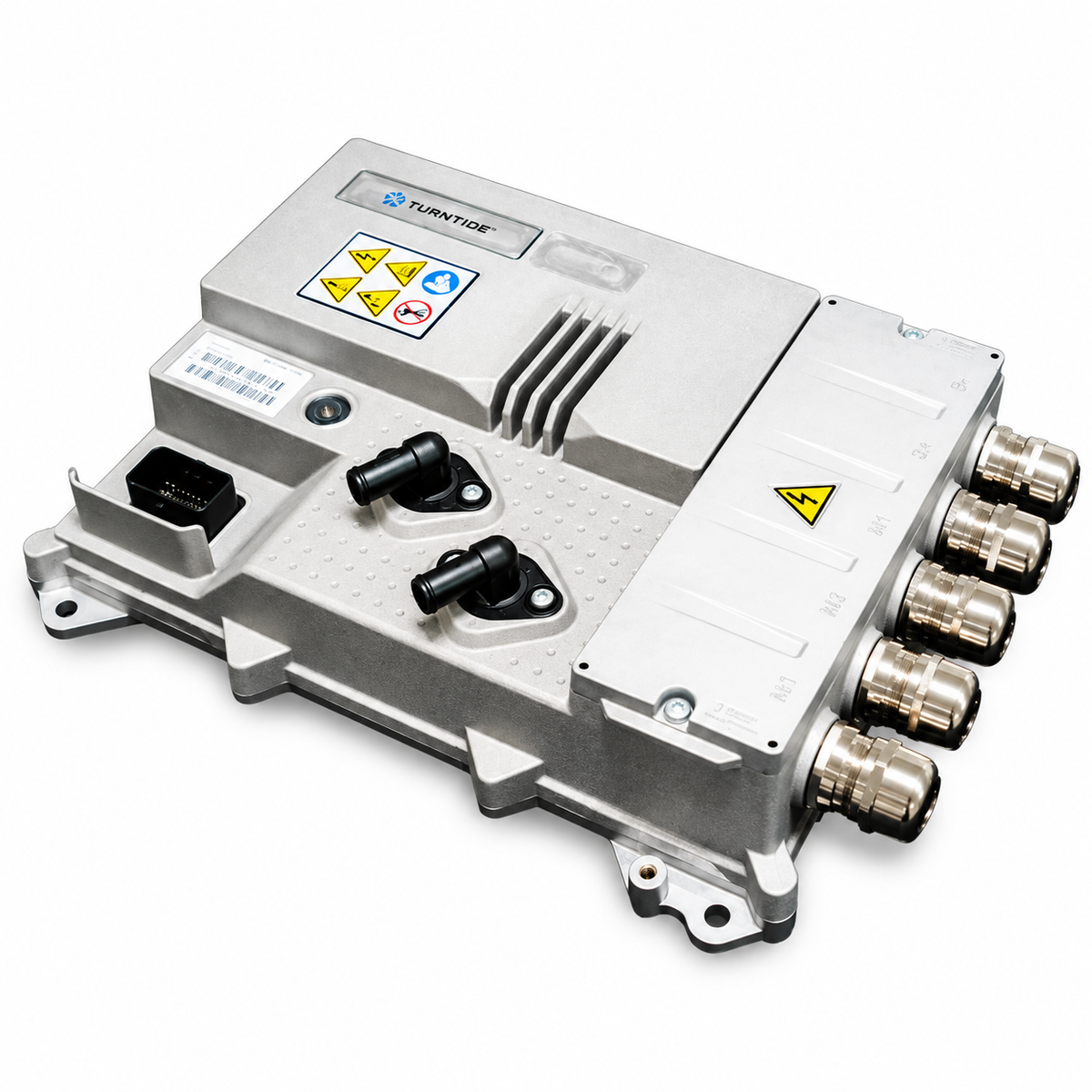

Turntide Gen 6, Size 9 Motor Inverter

The Turntide Gen 6 Size 9 is a liquid-cooled motor inverter for electric and hybrid vehicle traction, hybridization, power generation and sub-system electrification. It drives AC permanent magnet synchronous and AC induction motors with advanced flux vector control, and pairs with Turntide's axial flux motors.

The Gen 6 Size 9 has no built-in vehicle controller functionality. Run it from a separate vehicle control unit, such as the Current Labs VCU.

Specifications

• Nominal voltage: 350 VDC
• Full derating: 450 VDC
• Minimum battery voltage: 128 V
• Boost current (10 s): 540 Arms
• Peak current (1 min): 400 Arms
• Continuous current (60 min): 200 Arms
• Cooling: liquid
• Auxiliary supply: 12 V or 24 V
