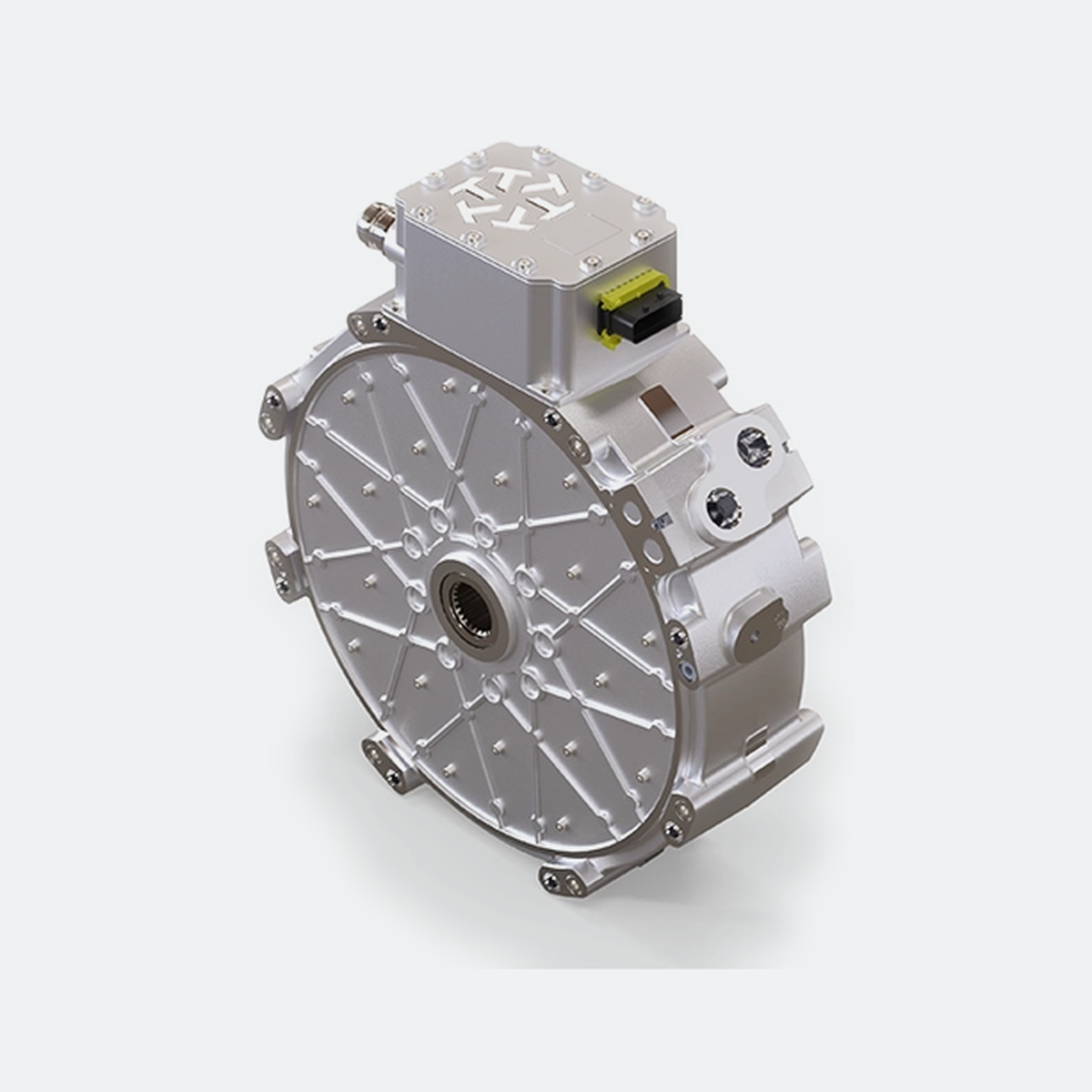

Turntide AF430S Axial Flux Motor

Turntide AF430S single-stack axial flux motor with a three-turn winding: the largest-diameter single stack, built for high torque at low speed.

Ratings are Turntide published figures. System output depends on the supplied winding, inverter limits, supply voltage and cooling.

Specifications

• Peak power (20 s): 360 kW / 483 hp
• Peak torque (20 s): 974.2 Nm / 719 lb-ft
• Continuous power: 101 kW / 135 hp
• Continuous torque: 443.8 Nm / 327 lb-ft
• Maximum speed: 3,700 rpm
• Supply voltage: up to 850 V DC
• Peak efficiency: 96%
• Cooling: indirect liquid (water / ethylene glycol)
• Ingress protection: IP67 and IP6K9K
• Rating conditions: 45°C ambient, 55°C coolant inlet, 12 L/min coolant flow
• Dimensions (length × diameter): 125 × 435.5 mm
• Weight (dry): 52 kg / 114.6 lb

Lead time: 3 months. Ships on a pallet from Turntide in Gateshead, UK. Shipping is not charged at checkout: someone from our team will contact you after your order to arrange and quote freight.
