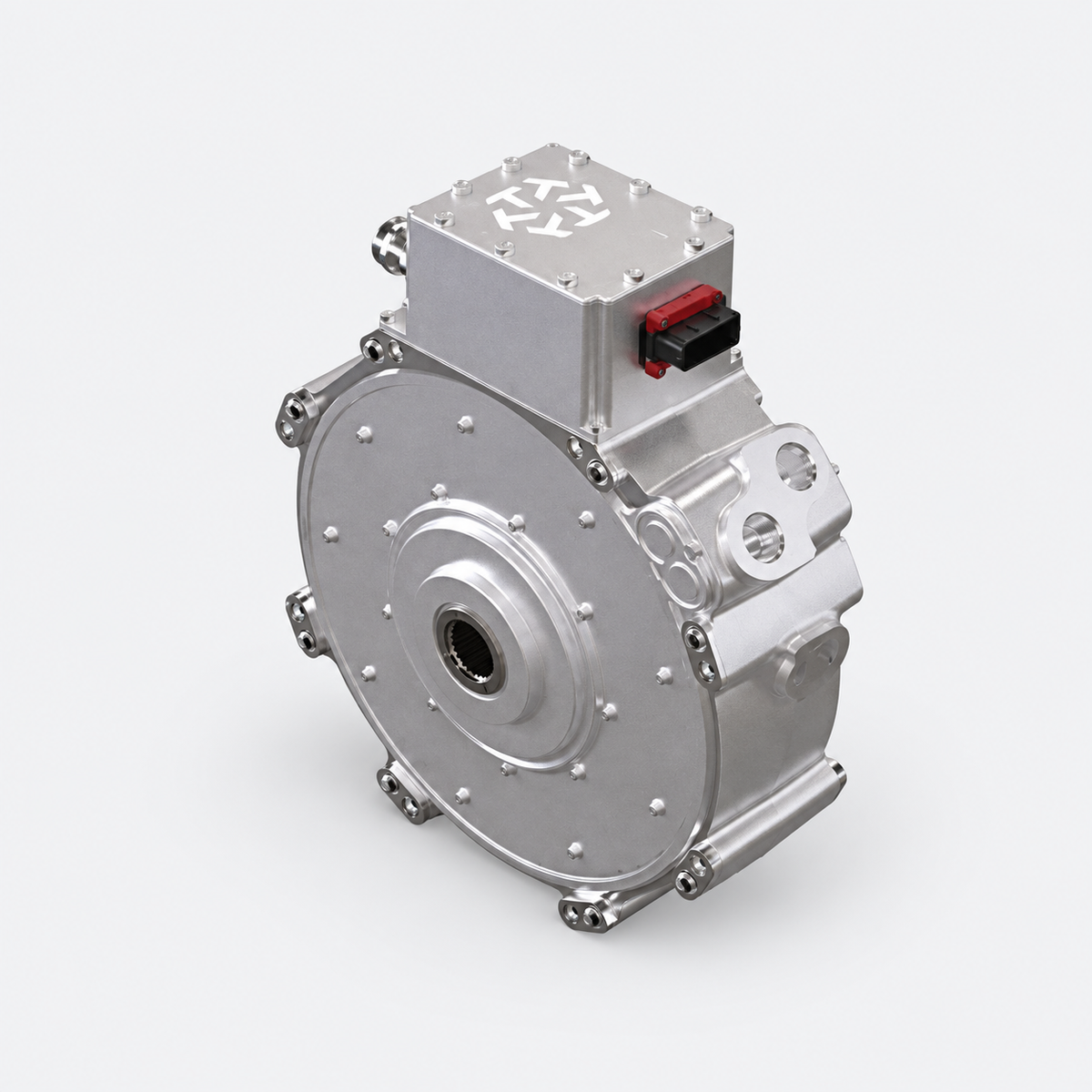

Turntide AF400S Axial Flux Motor

Turntide AF400S single-stack axial flux motor: the larger-diameter stack, with more torque at lower speed. Runs on one Turntide Gen 6 Size 9 inverter (sold separately). Supplied with high-voltage phase cables.

Ratings are Turntide reference figures at 400 V DC with a three-turn winding. System output depends on the supplied winding, inverter limits, supply voltage and cooling.

Specifications

• Peak power (20 s): 198 kW / 266 hp
• Peak torque (20 s): 650 Nm / 479 lb-ft
• Continuous power (60 min): 76 kW / 102 hp
• Continuous torque (60 min): 290 Nm / 214 lb-ft
• Maximum speed: 5,000 rpm
• Rating conditions: 45°C ambient, 55°C coolant inlet, 8 L/min coolant flow
• Dimensions (length × diameter): 115 × 381.7 mm
• Weight (dry): 40 kg / 88.2 lb

Lead time: 3 months. Ships on a pallet from Turntide in Gateshead, UK. Shipping is not charged at checkout: someone from our team will contact you after your order to arrange and quote freight.
