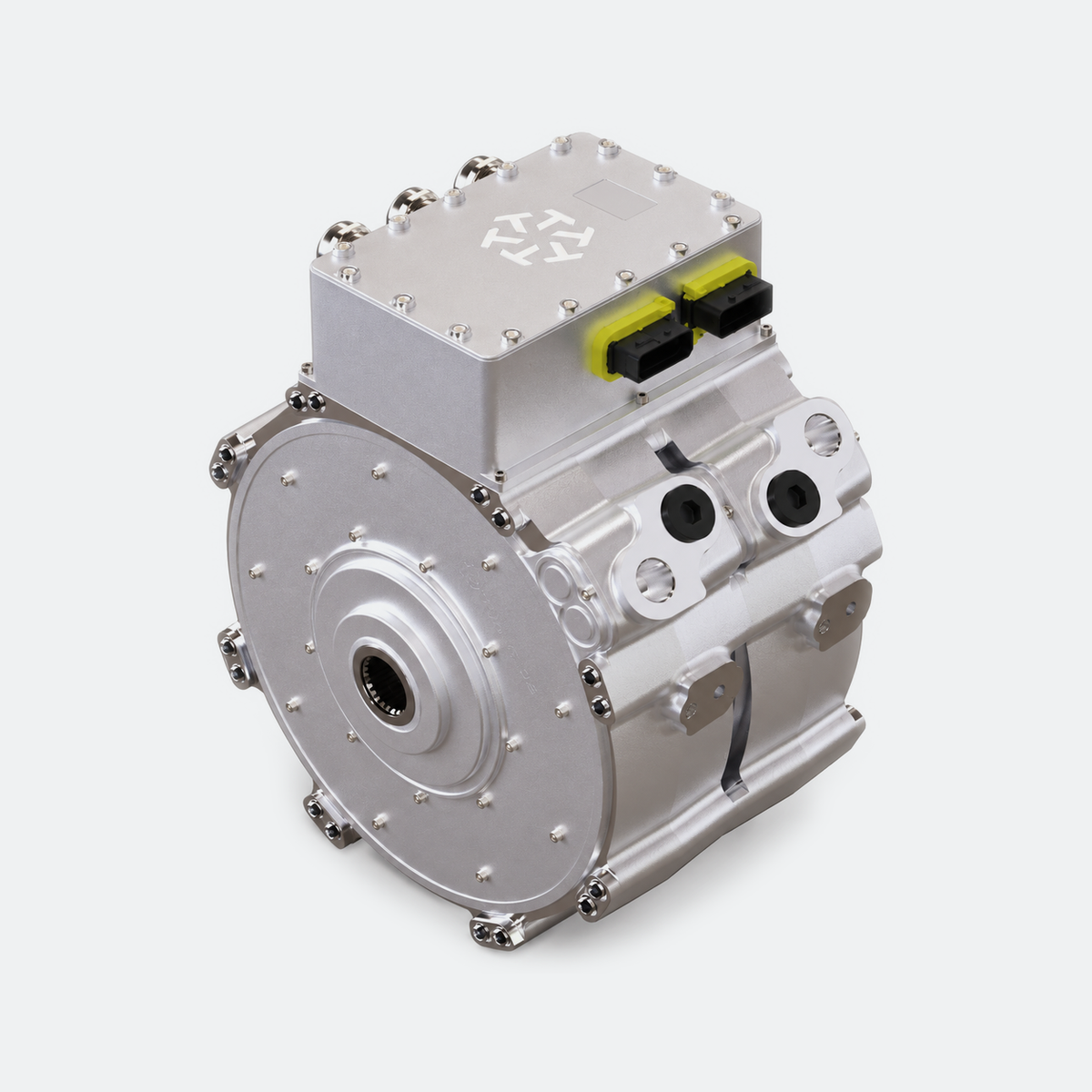

Turntide AF400D Axial Flux Motor

Turntide AF400D double-stack axial flux motor: two AF400 stacks in one housing for the most torque in the range. Runs on two Turntide Gen 6 Size 9 inverters (sold separately). Supplied with high-voltage phase cables.

Ratings are Turntide reference figures at 400 V DC with a three-turn winding. System output depends on the supplied winding, inverter limits, supply voltage and cooling.

Specifications

• Peak power (20 s): 396 kW / 531 hp
• Peak torque (20 s): 1,300 Nm / 959 lb-ft
• Continuous power (60 min): 152 kW / 204 hp
• Continuous torque (60 min): 580 Nm / 428 lb-ft
• Maximum speed: 5,000 rpm
• Rating conditions: 45°C ambient, 55°C coolant inlet, 16 L/min coolant flow
• Dimensions (length × diameter): 230 × 381.7 mm
• Weight (dry): 80 kg / 176.4 lb

Lead time: 3 months. Ships on a pallet from Turntide in Gateshead, UK. Shipping is not charged at checkout: someone from our team will contact you after your order to arrange and quote freight.
