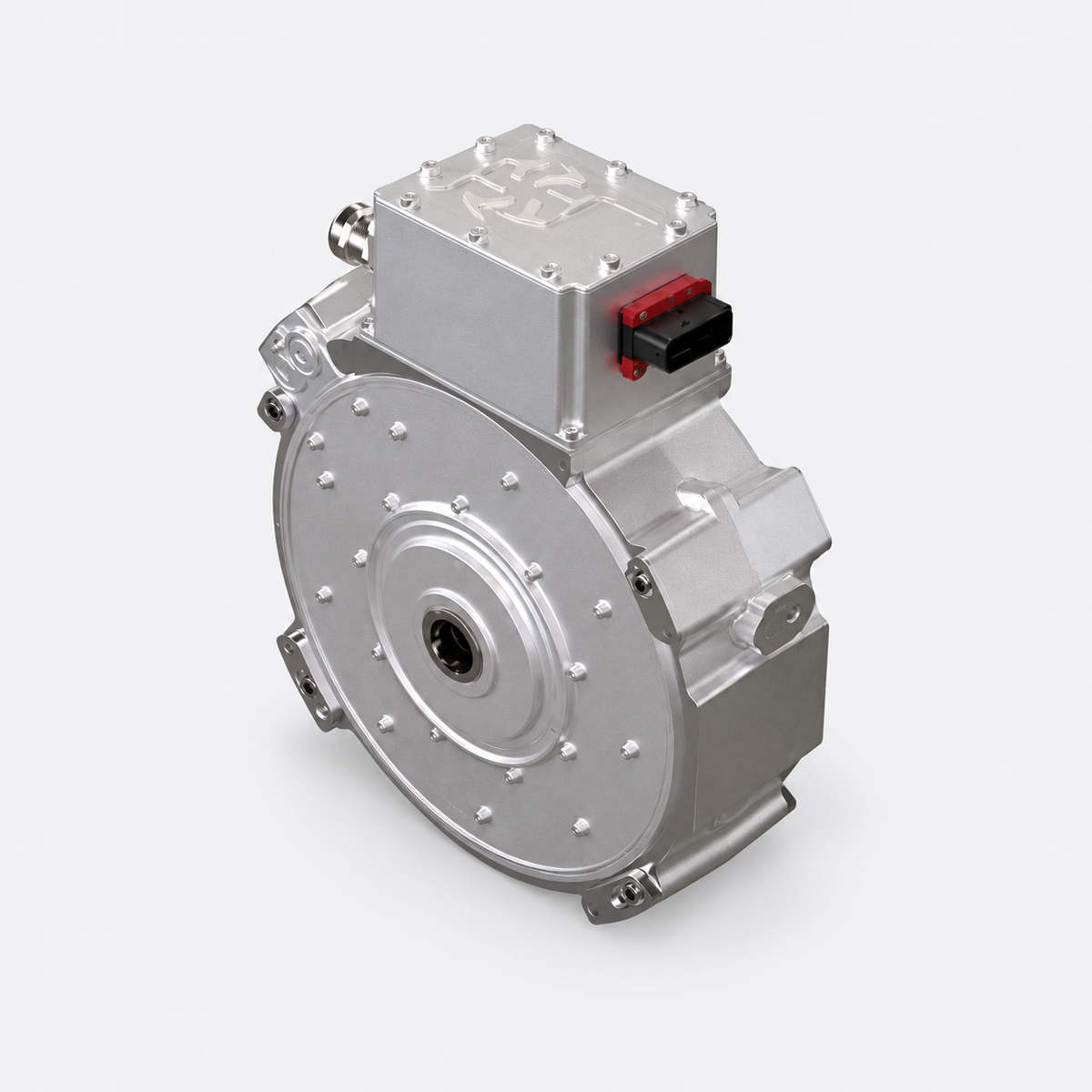

Turntide AF300S Axial Flux Motor

Turntide AF300S single-stack axial flux motor: high torque in a short, flat package for EV conversions and custom drivetrains. Runs on one Turntide Gen 6 Size 9 inverter (sold separately). Supplied with high-voltage phase cables.

Ratings are Turntide reference figures at 400 V DC with a three-turn winding. System output depends on the supplied winding, inverter limits, supply voltage and cooling.

Specifications

• Peak power (20 s): 167 kW / 224 hp
• Peak torque (20 s): 452.3 Nm / 334 lb-ft
• Continuous power (60 min): 66 kW / 89 hp
• Continuous torque (60 min): 193.9 Nm / 143 lb-ft
• Maximum speed: 8,000 rpm
• Rating conditions: 45°C ambient, 55°C coolant inlet, 8 L/min coolant flow
• Dimensions (length × diameter): 110 × 333.8 mm
• Weight (dry): 28.4 kg / 62.6 lb

Lead time: 3 months. Ships on a pallet from Turntide in Gateshead, UK. Shipping is not charged at checkout: someone from our team will contact you after your order to arrange and quote freight.
