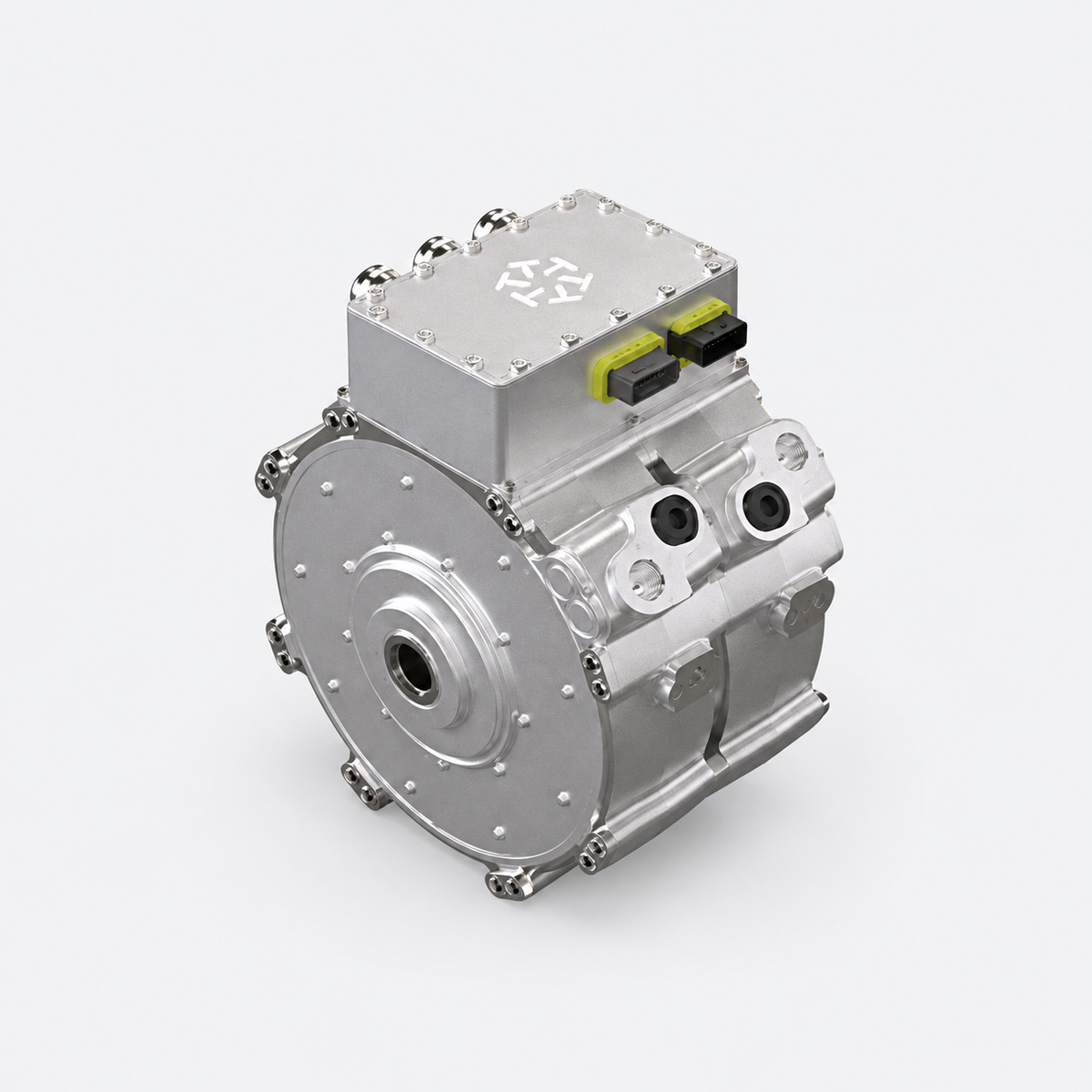

Turntide AF300D Axial Flux Motor

Turntide AF300D double-stack axial flux motor: two AF300 stacks in one housing for twice the torque. Runs on two Turntide Gen 6 Size 9 inverters (sold separately). Supplied with high-voltage phase cables.

Ratings are Turntide reference figures at 400 V DC with a three-turn winding. System output depends on the supplied winding, inverter limits, supply voltage and cooling.

Specifications

• Peak power (20 s): 334 kW / 448 hp
• Peak torque (20 s): 904.6 Nm / 667 lb-ft
• Continuous power (60 min): 132 kW / 177 hp
• Continuous torque (60 min): 387.8 Nm / 286 lb-ft
• Maximum speed: 8,000 rpm
• Rating conditions: 45°C ambient, 55°C coolant inlet, 16 L/min coolant flow
• Dimensions (length × diameter): 220 × 333.8 mm
• Weight (dry): 57.8 kg / 127.4 lb

Lead time: 3 months. Ships on a pallet from Turntide in Gateshead, UK. Shipping is not charged at checkout: someone from our team will contact you after your order to arrange and quote freight.
