Current LA Liquid Cooling Plate for LG E78 Battery Modules – 6061 Aluminum, AN-6
Current LA Liquid Cooling Plate for LG E78 Battery Modules – 6061 Aluminum, AN-6
Couldn't load pickup availability

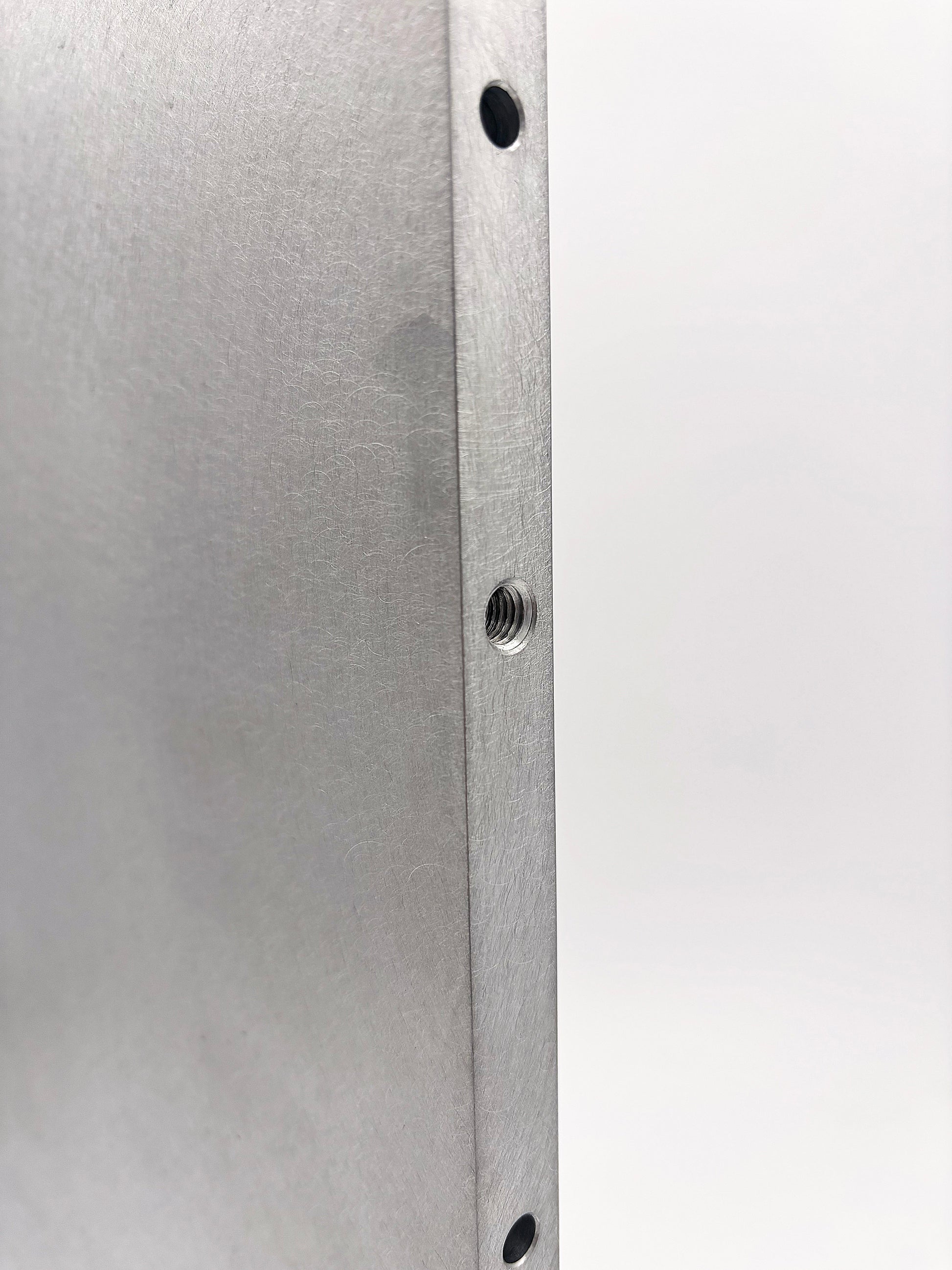

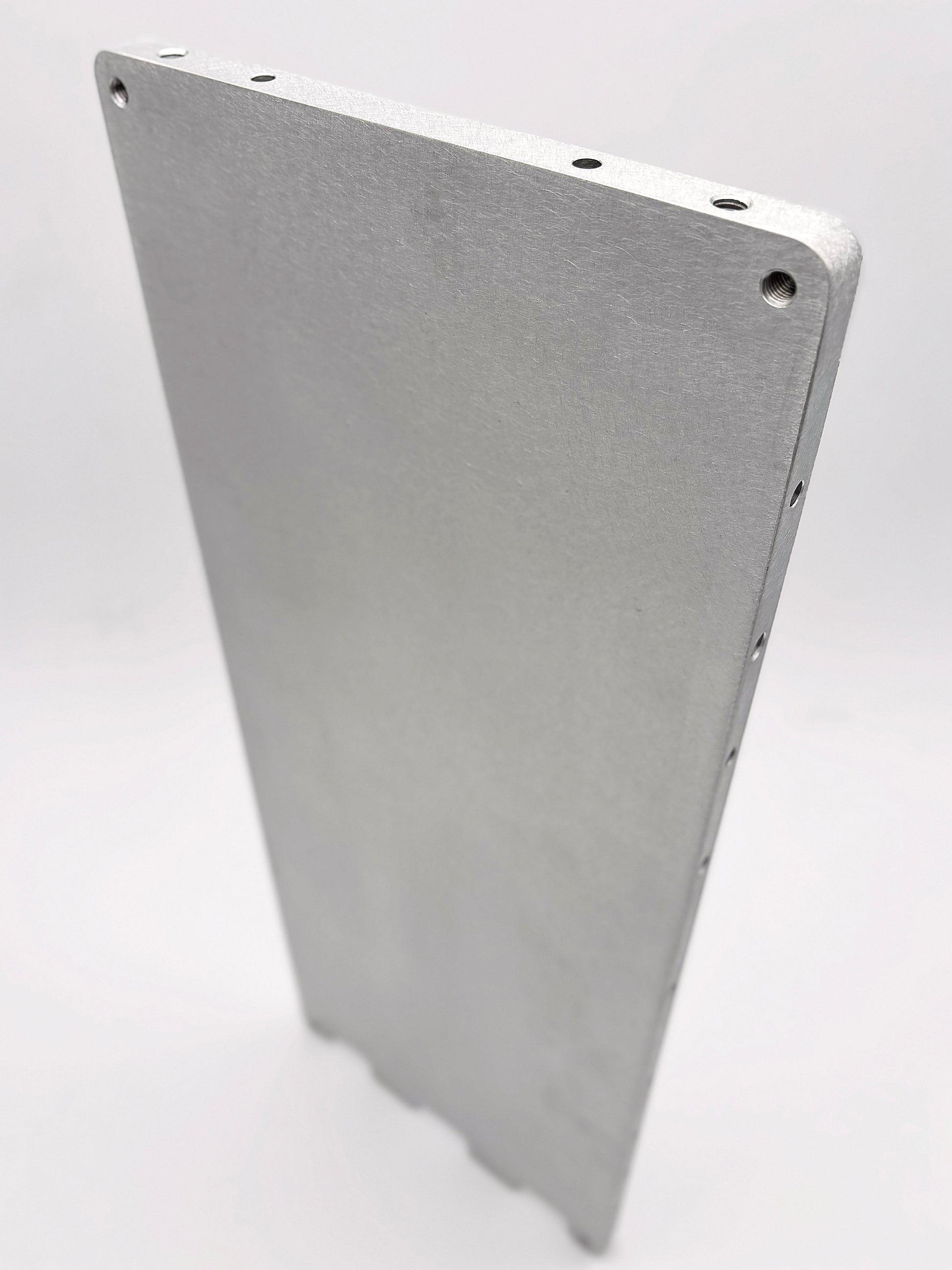

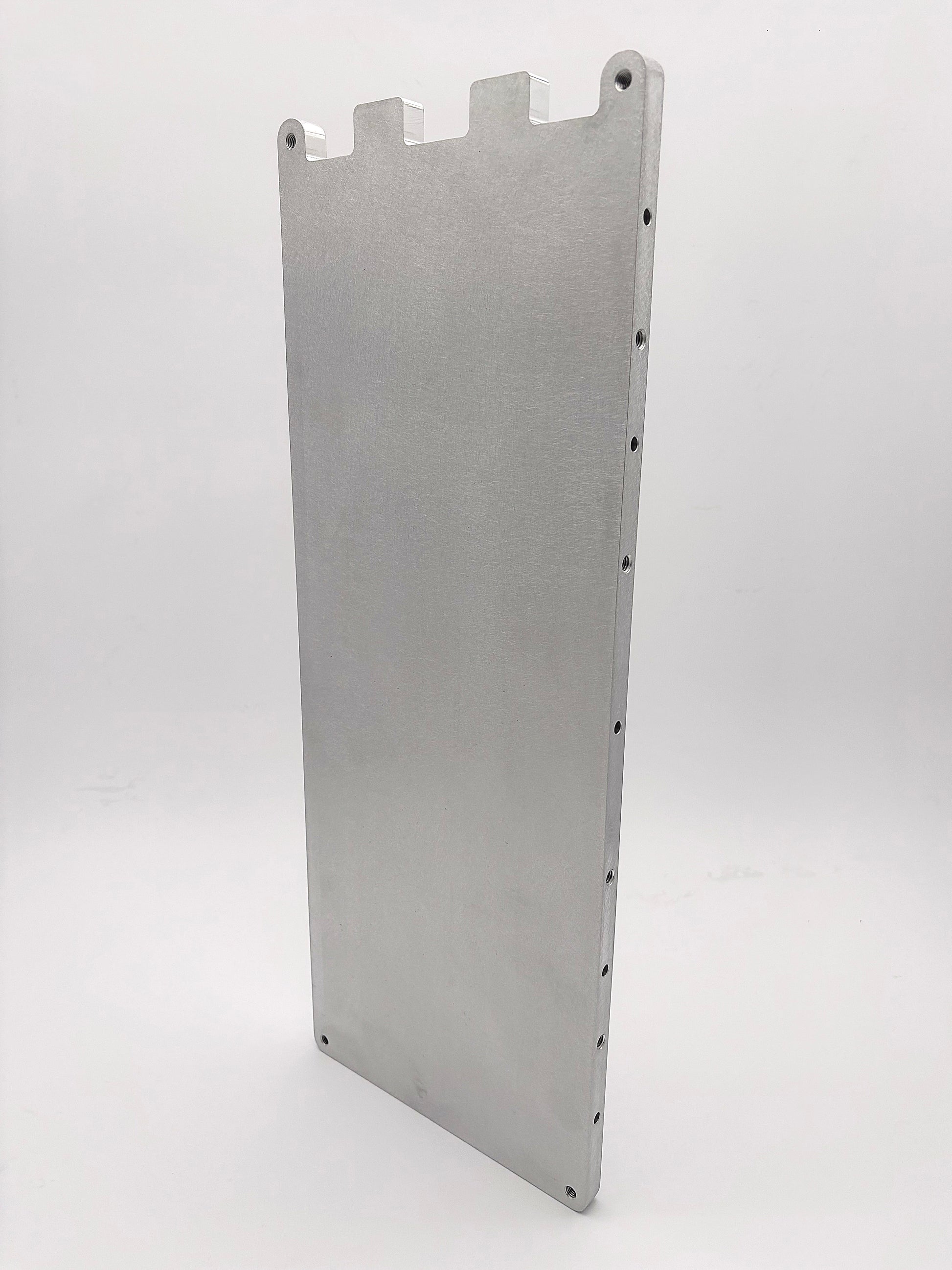

The Current LA Thermal Plate is a liquid cooling plate we designed for LG E78 2P12S battery modules, including the MEB 2P12S modules we sell. It bolts directly under the modules and keeps the cells cool through DC fast charging, hard driving and hot weather.
It does two jobs at once: one plate cools two modules side by side, and its 16 mm aluminum body is stiff enough to act as a structural member of the pack. We couldn't find another plate on the market that does both, so we built one. Machined 6061-T6 aluminum with friction stir welded internal channels for leak-free flow.
Tested performance

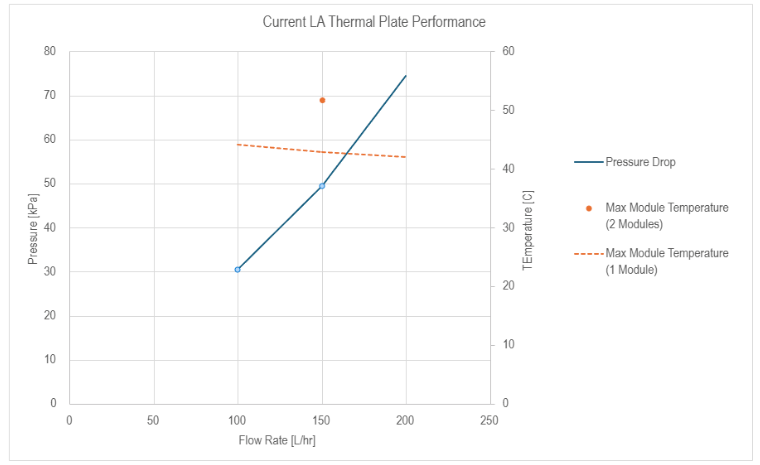

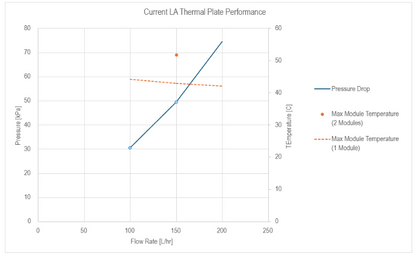

At 38 °C (100 °F) ambient with a 400 W continuous heat load per module (the module's 174 A maximum charge rate), the plate holds a single module at about 43–44 °C steady state. Pressure drop is about 30 kPa at 100 L/h and 49 kPa at 150 L/h, so several plates can run in series or parallel on one pump.
Sizing your battery box

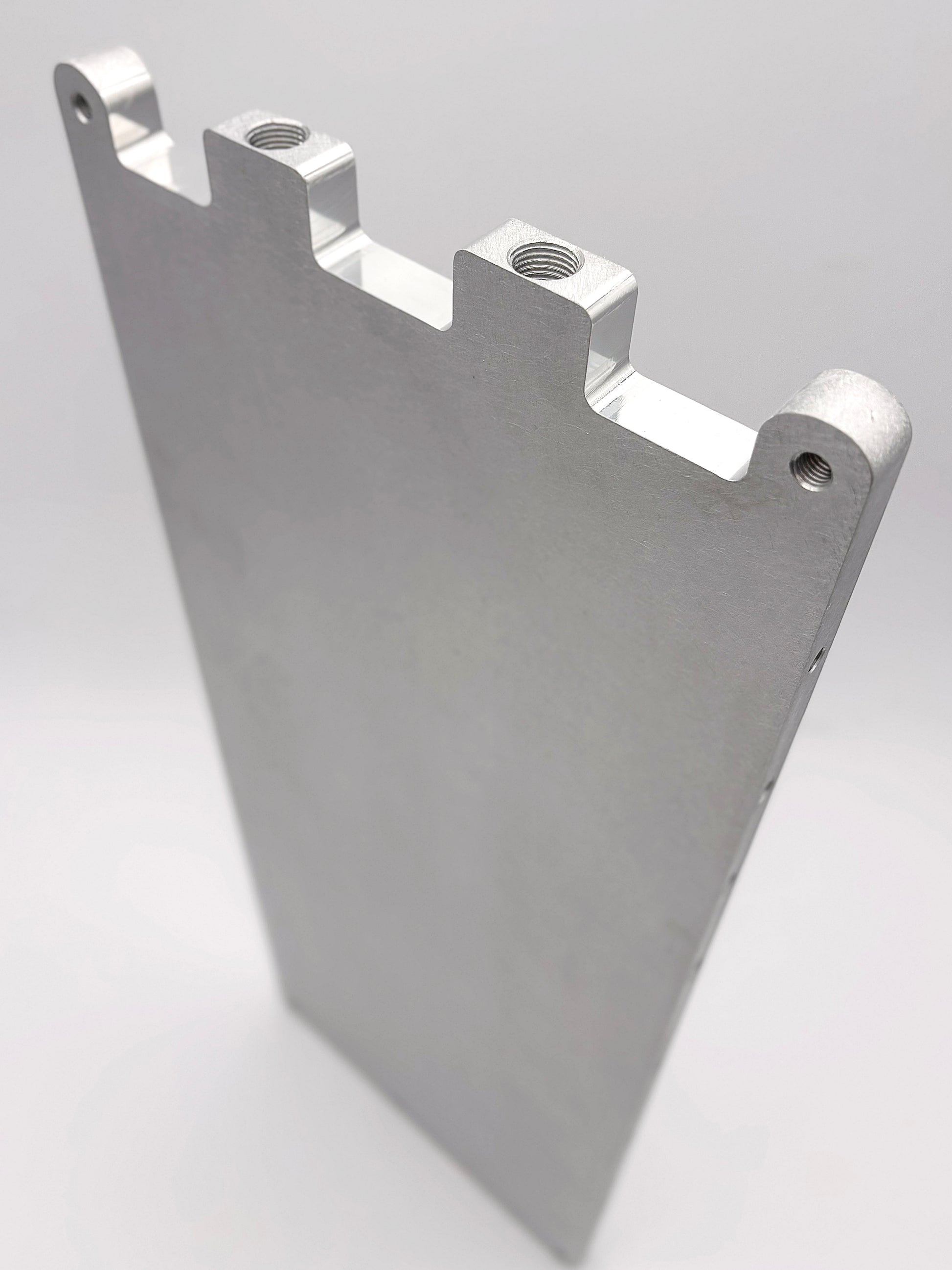

The two AN-6 ports point along the length of the plate, so add your fitting's port-face-to-hose-centerline dimension to the 589.5 mm plate length. A 90° swivel fitting adds the least length; a straight fitting adds the most.
Specifications
| Compatible modules | LG E78 / MEB 2P12S (1 or 2 per plate) |
| Structural | Serves as a structural member of the pack |
| Overall size | 589.5 × 225 × 16 mm (23.21 × 8.86 × 0.63 in) |
| Material | 6061-T6 aluminum, ±0.05 mm |
| Construction | Machined, friction stir welded channels |
| Mounting | M8 × 1.25 threaded holes |
| Ports | 2 × female AN-6 / JIC 37° (9/16-18 UNF) |
| Coolant | 50/50 glycol and water |
| Pressure drop | ~30 kPa @ 100 L/h, ~49 kPa @ 150 L/h |
| Weight | About 5 kg / 11 lb |
Notes from the Current EV team
We built this plate for our own packs, because nothing on the market could carry two E78 modules and stiffen the pack at the same time. It's in the battery packs of our first Porsche 356 (a 1965) and the Clown Shoe, our land speed car. Pair it with our new MEB 2P12S modules.
Fittings and hoses not included. Contact us for help laying out plates and the coolant loop for your pack.
