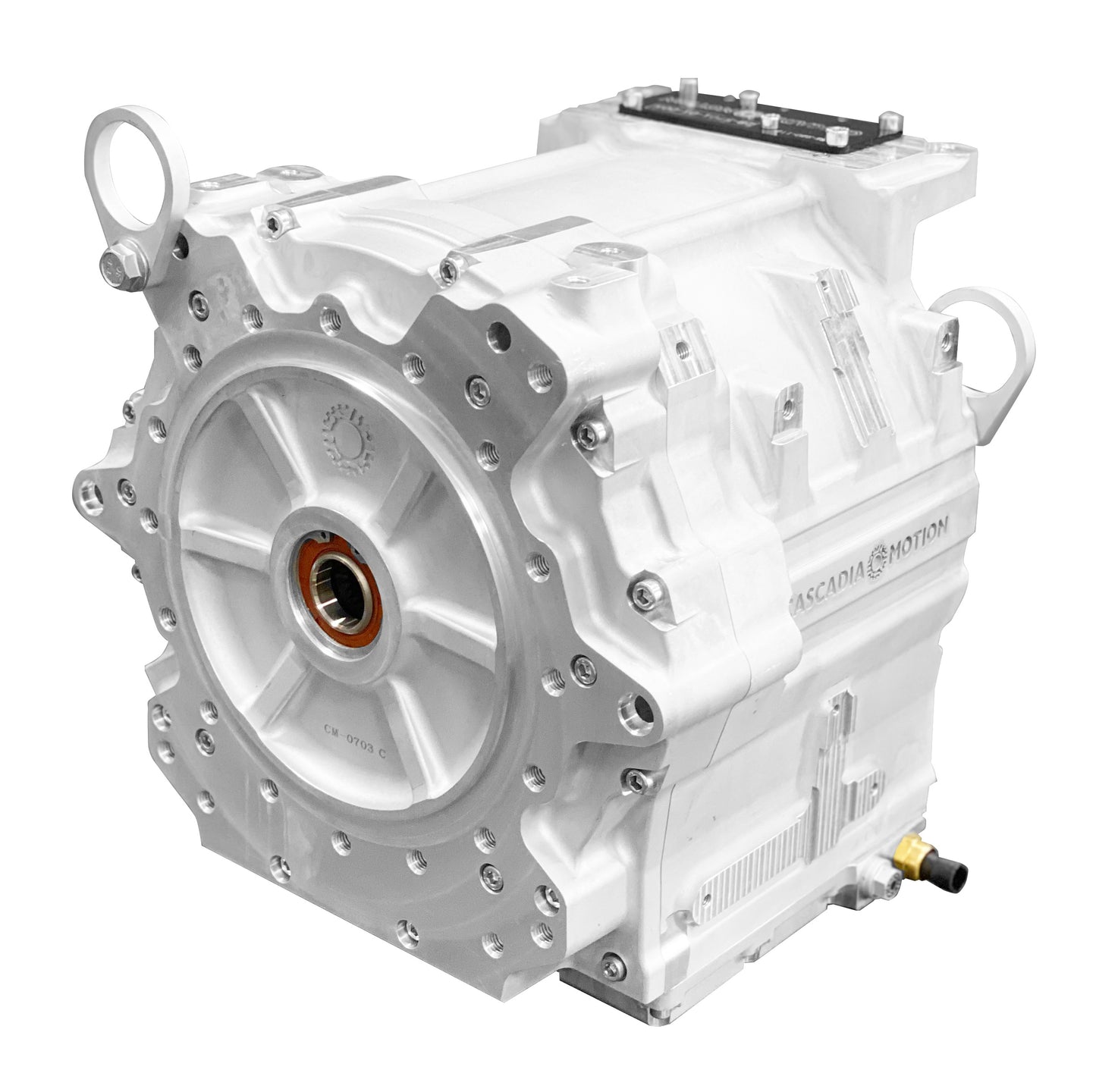

Cascadia Motion SS-250-115-D GEN2 SINGLE STACK

The Cascadia Motion SS-250-115-DOM Motor is a high-performance electric motor designed for demanding automotive and motorsport applications. This motor delivers an impressive power output of 250 kW (~335 HP) at around 400 Vdc and 375 kW (~503 HP) at around 700 Vdc, making it ideal for high-speed, high-torque applications such as electric race cars and performance EV conversions. The SS-250-115-DOM features a robust and compact design, allowing for easy integration into a variety of vehicle platforms. With advanced cooling options and a highly efficient design, this motor ensures consistent performance even under extreme conditions. Built with precision and reliability in mind, the Cascadia Motion SS-250-115-DOM Motor is trusted by OEMs and motorsport teams for its exceptional power, durability, and responsiveness, making it a top choice for cutting-edge electric vehicle projects.

• Peak torque: 500Nm
• Peak speed: 12,000 RPM
• Peak power (kW): 375kW @ 700Vdc / 250kW @ 400Vdc
• Peak power (hp): ~335hp@ 700Vdc / ~503hp@ 400Vdc
• DC bus voltage: up to 850V
• Weight: 57Kg / 125lbs
• Includes integrated oil pump and heat exchanger

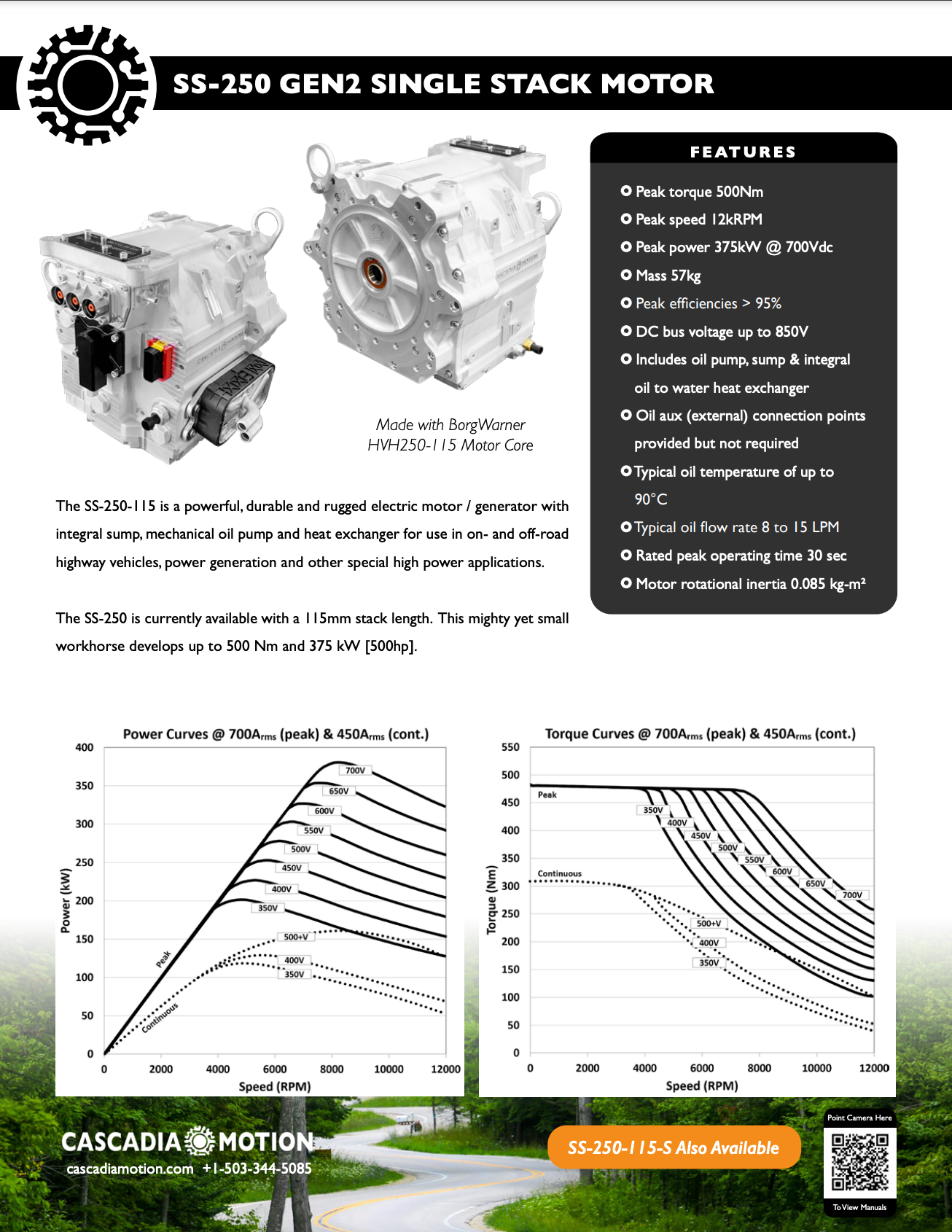

Data Sheet: https://www.cascadiamotion.com/images/catalog/DataSheets/SS-250-115.pdf
