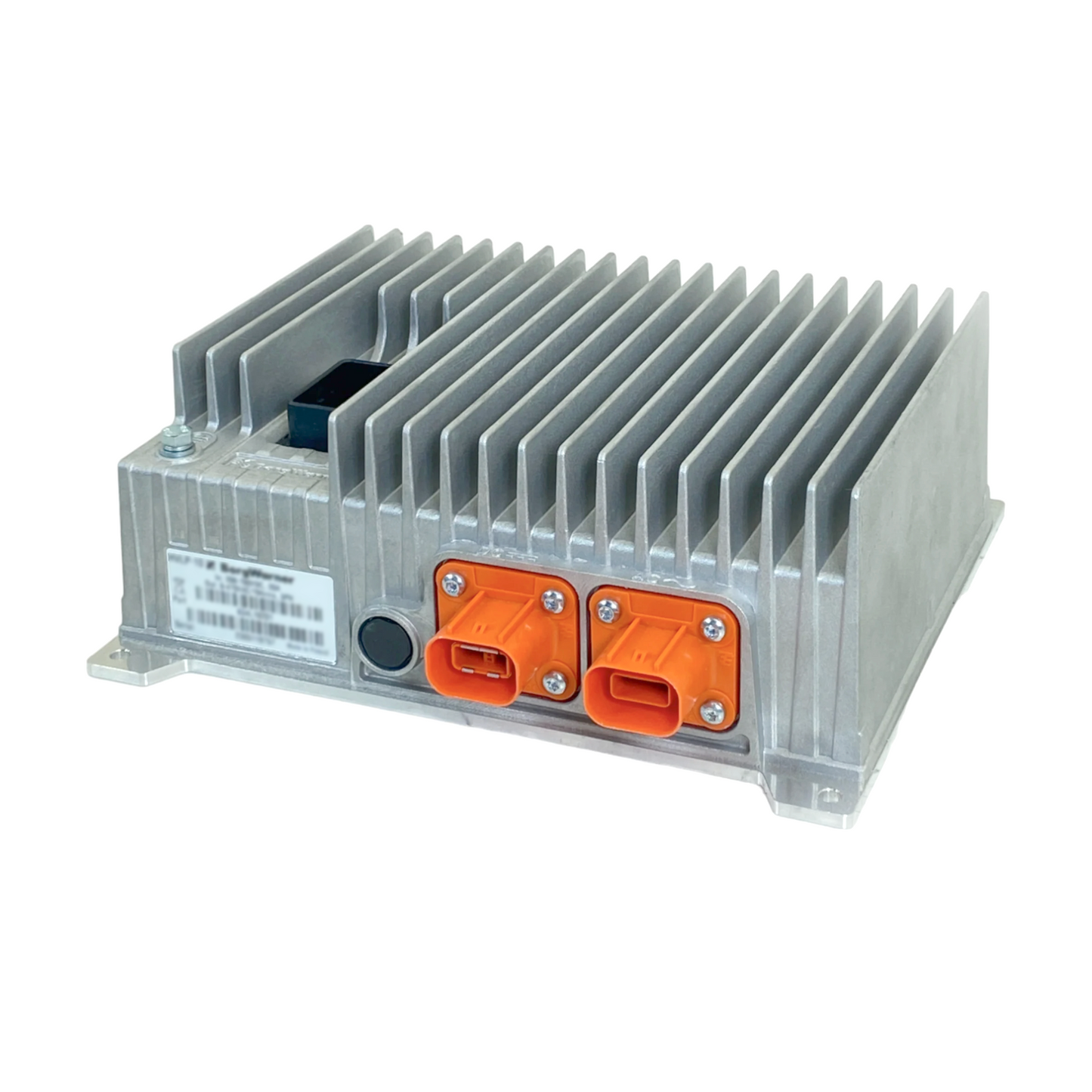

Borg Warner HVLP-10

A new range of low power AC motor controllers/inverters designed primarily for ancillary control of pumps and fans on hybrid and electric buses, agricultural implements, tractors and other high voltage vehicles. There are two models in the range, which cover both liquid cooled and air cooled designs.

Features:

• Advanced Field Oriented Control
• AC Permanent Magnet Synchronous motor control, including salient, non-salient and BLDC motors
• AC induction motor control without speed sensor
• Operation without a position sensor for PMSM motors supported for custom applications
• 200 V to 800 VDC battery voltage
• Up to 53 A peak current (HVLP-20)
• Up to 33 A continuous current (HVLP-20)
• CAN communications bus allows for easy interconnection of controllers and devices such as Battery Management Systems, displays and VCUs
• CANopen and J1939 protocols Configurable as a vehicle control master (including pump and generator control) or as a motor control slave
• High Voltage Interlock (HVIL)
• 12 V or 24 V nominal supply
• Highly configurable
