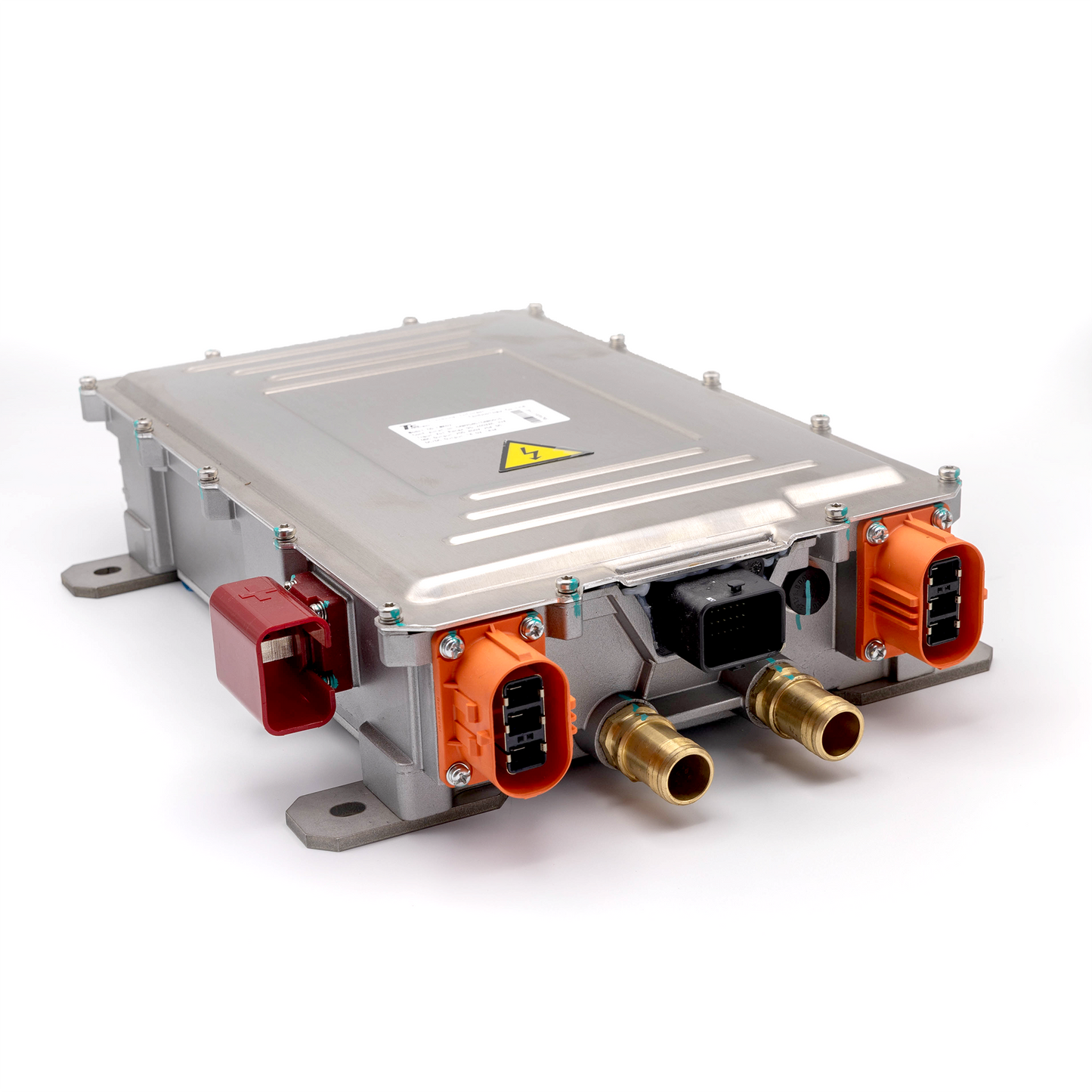

6.6kW OBC Charger + 1.5kW DC-DC

CAD662DF400-14152 is a combination high-frequency 6.6KW battery charger and 1.5KW DC/DC converter in one package, Integrated high-frequency battery charger andDC/DC converter saves space, weight, and cabling  thereby minimizing the cost of inventory, installation, and service.

CAD662DF400-14152 on-board charger series is designed for electric vehicle battery chargingwith demand for efficiency, robustness and safety. The electrical input voltage for  CAD662DF400-14152 ranges from AC 85~265V, making it an ideal selection for worldwide usage. Its high-efficiency performance makes the charging more economical. CAD662DF400-14152 provides intelligent charging mode which adjusts the voltage in CC/CV/cut off automatically. It also features short-circuit, over voltage, over current and over temperature protections under charging. The CAN-bus interface delivers message with charging flow, interlock connection, and any disconnection or error message to VCU (Vehicle Control Unit) via BMS (Battery Management System).
CAD662DF400-14152 charger series is in compliance with SAE J1772 and IEC 61851 to meet international standard, and with IP 67 for critical operating environment.
